HOWO Special Purpose Truck 10t BCLH-10 On-Site Mixed and Charging Granular ANFO Explosive Truck
Technical specification of HOWO Special Purpose Truck 10t BCLH-10 On-Site Mixed and Charging Granular ANFO Explosive Truck
| Item | Specification |
| Chassis | ZZ1167M4611W HOWO Brand 4X2 New model truck face with white chassis and body |
| Engine | WD615.87 Euro II Emission Standard with 290hp |
| Front Axle | HF7 |
| Rear Axle | ST16 |
| Tyre | 12.00R20, 6+2 spare tyre (1+1 spare tire carrier) |
| Explosive loading capacity | 10T |
| Truck weight | 16T |
| Loading weight | 10T |
| Volume loading of AN tank | 12.5m3 |
| Capacity of AN tank | 9350 kg |
| Wall thickness of AN tank | 4-6mm |
| Volume of Diesel tank | 850L |
| Productivity | 50--750kg/min |
| Auge Diameter | 200mm |
| Loading hole size of mining | >=80mm |
| Working ambient temperature | _40 -- 40°C |
| Vibrator | 4--6 pcs |
| Fire distinguisher | 4 pcs |
| manhole | 2-3 pcs |
| Tool box | 1 pcs |
| Warranty | one year for easy worn out parts (attachment), Only one AN auge is need. No need of filling material auge |
| Remark | -Will provide spare parts list and manuals with code and model -Alarm light (safety signal), emergency stop are available -All the metal need to be painted for protection -Formula could be set in computor, and ratio could check and adjusted on computer Provide the certificate of ISO other necessary government required documents -Control panel screen, buttons and system in english -Service and maintenance manual in english. -With camera when fill hole, video can reserve 3 month. |
Introduction of HOWO Special Purpose Truck 10t BCLH-10 On-Site Mixed and Charging Granular ANFO Explosive Truck
The company's main business is a series of bulk explosive mixed loading vehicles (mainly including BCRH, BCZH, BCLH three models), underground loading trucks, mobile ground stations, fixed ground stations, environmental protection vehicles, special vehicle modification and boilers, pressure vessels, loading Medicines and other products have the competitive advantages of special industries, high-tech advantages, strong welding and processing capabilities of non-ferrous metals such as stainless steel, aluminum alloys, etc., and are the domestic advanced blasting charge machinery research and development center, ranking the forefront in the national civil explosive industry . The company's leading product-drug-loaded vehicles are exported to 27 provinces, municipalities and autonomous regions across the country, directly serving major projects such as Benxi Iron and Steel, Three Gorges and Western Development, and are widely used in metallurgy, coal, chemical industry, building materials, transportation, water conservancy railway corps industry. It is also exported to Russia, Mongolia, Zambia, Laos, Nigeria and other countries in batches. BCRH-15, BCZH-15, BCLH-15 and other on-site mixed explosive vehicles were awarded the title of Provincial Excellent and Ministry Excellent Products. Among them, the BCRH-15 on-site mixed explosive vehicle was awarded the "Second Prize of National Major Equipment Achievements" by the State Council Major Technical Equipment Office.
Technical service commitment:
1. The quality of the ANFO truck meets the requirements of GB17583.
2. When the truck is used, Party B is responsible for training the user on safety, technology, equipment maintenance and repair, and is responsible for equipment commissioning and guiding trial production.
3. When the equipment is delivered, provide the operation, use and maintenance instructions of the listed pharmaceutical part, relevant information of the automobile chassis and process technical information.
Product Tags:
|
|

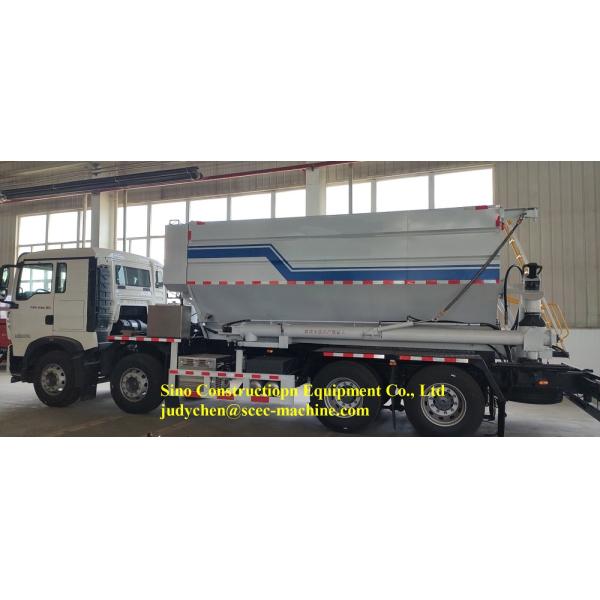

Special Purpose Truck 10 Ton On-Site Mixed and Charging Granular ANFO Explosive Truck Images
|
