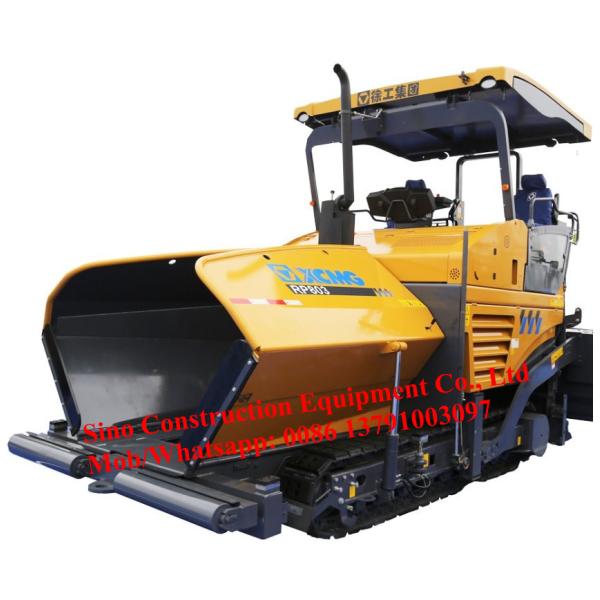

3m-8.15m Width Road Construction Crawler Type Concrete Asphalt Paver RP803
Quick look of Crawler Concrete Asphalt Paver RP803
Basic paving width (m): 3
Maximum paving width (m): 8.15
Paving speed (m/min): 20
Maximum paving thickness (mm): 400
Theoretical paving capacity (t/h): 700
Hopper capacity (t): 15
Engine power (kw): 140
Maximum paving width: (7~10m) large
Way of walking: track
Advantages:
(1) Left and right independent drive, microcomputer control, automatic control technology of paving speed and constant speed.
(2) The left and right conveying material adopts ultrasonic sensor control technology.
(3) The leveling system adopts electronic automatic leveling technology to effectively improve the smoothness of the road surface.
(4) The hydraulic telescopic screed adopts single vibration, pulse vibration and electric heating technology, which is environmentally friendly and improves the life of the screed plate.
(5) The centralized lubrication system can manually and evenly supply oil to the bearings of various high temperature parts on a regular basis.
(6) RP803 Crawler Concrete Asphalt Paver comes standard with advanced, mature and reliable SAIC Motor's new generation of four-valve SC7H water-cooled supercharged engine with strong power and low fuel efficiency.
(7) The distribution blade adopts high wear-resistant alloy material.
(8) The console can intuitively display various working functions, paving and driving speed, and can be installed left and right.
(9) The whole machine has the advantages of high degree of automation, simple and convenient operation, good construction quality and high working efficiency.
Technical specs:
| Item | Unit | Specs(E600T) |
| Basic paving width | m | 3.0 |
| Maximum paving width | m | 8.15 |
| Maximum paving thickness | mm | 400 |
| Working speed | m/min | 20 |
| Maximum travel speed | km/h | 3.0 |
| Theoretical productivity | t/h | 700 |
| Hopper capacity | t | 15 |
| Gradeability | ％ | 20 |
| Flatness | mm/3m | ≤3 |
| Cross slope error | % | ±0.2 |
| Crown adjustment range | % | -1～+4 |
| Diesel engine power | kW | 140 |
| Diesel engine speed | r/min | 2000 |
| Splitting speed | r/min | 0～90 |
| Conveying speed | m/min | 0～27 |
| Vibration speed | r/min | 0～1500 |
| Vibration amplitude | mm | 4 |
| Dimensions | mm | 7040×3000×3160 |
| Total Weight | t | 22.2～27.8 |
| Diesel tank volume | L | 300 |
| Hydraulic oil tank volume | L | 300 |
