XCMG Construction Handling Equipment 37m HB37K Diesel Mini Small Truck Mounted Concrete Pump truck
XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
Features of the Hydraulic System
1. The closed free fluid power system formed by double pump confluence has the features of large output, small depreciation and smooth commutation with no impact.
2. The intelligent control system makes the driving oil flow incessantly and directly into the driving oil cylinder without any loss.
3. As there are no fussy middle commutation control valves, the commutation impact is reduced and excessively high oil temperature is avoided. Meanwhile, it makes maintenance easier.
4. Compared with the open system with a large oil tank, the closed system needs a small oil tank. The oil in the tank flows gently, which reduces the chance of emulsification.
5. The unique buffering technology can lower the system's high-pressure peak value. Even at the time of high output, the distributing boom vibrates little and the tail pipe remains stable.
6. The concrete output can be regulated through the electronic proportional variable adjustment according to your actual needs.
Product Show
Product Paramenters
| Description | Unit | Parameter value |
| Outline dimension | mm | 12000×2500×3900 |
| Overall weight | kg | 24500 |
| Chassis | Model | | ZZ5307N4647C |
| Max. speed | km/h | 90 |
| Max. grade-ability | % | 40 |
| Wheelbase | mm | 4600+1350 |
| Tire | | 11.00R22.5 |
| Engine | Model | | WD615.96 |
| Max. power | kW | 279 |
| Max. torque | N·m/(r/min) | 1590/1100~1600 |
| Displacement | L | 9.276 |
| Emission standard | | Eruo III |
| Pumping system | Theoretical output | m³/h | 130 |
| Concrete pumping pressure | MPa | 8 |
| Theoretical pumping times | Time/min | 24~27 |
| Delivery cylinder diameter ×stroke | mm | φ230×2000 |
| Max. diameter of pumping concrete | mm | 40 |
| Filling height | mm | 1580 |
| Concrete slump range | cm | 8~23 |
| Placing boom | Reach height | m | 29.6 |
| Reach depth | m | 18 |
| Slewingradius | m | 36.5 |
| Slewing angle | ° | ±270 |
| Unfolding angle of the 1st section | ° | 90 |
| Unfolding angle of the 2nd section | ° | 180 |
| Unfolding angle of the 3rd section | ° | 245 |
| Unfolding angle of the 4th section | ° | 235 |
| Stabilizer span | Longitudinal span of stabilizer | mm | 6421 |
| Transverse span of front stabilizer | mm | 5430 |
| Transverse span of rear stabilizer | mm | 7381 |
| Others | Lubrication method | | Automatic lubrication |
| Control method | | Manual/remote control |
| Volume of water box | L | 600 |

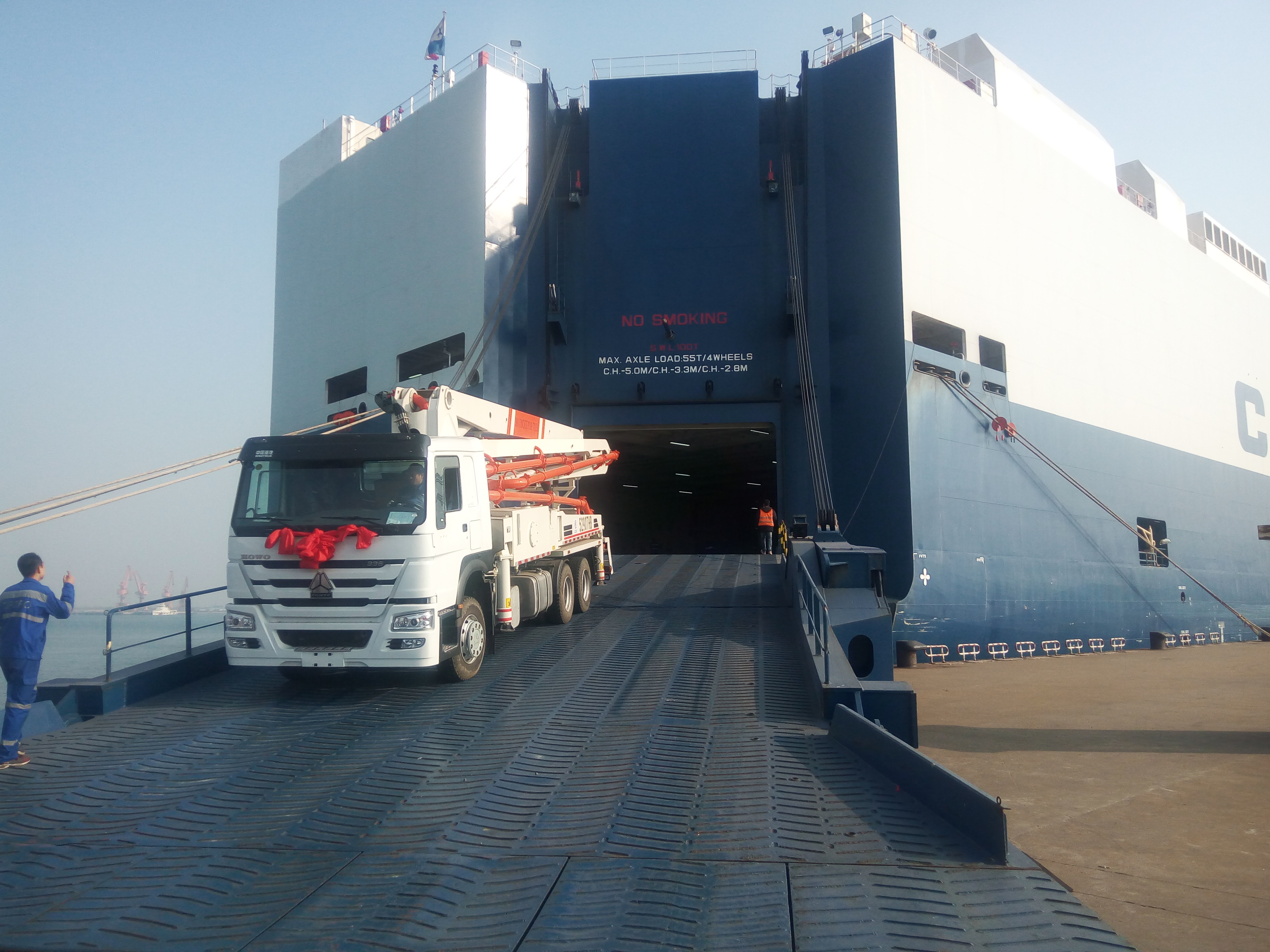

Packaging & Shipping
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
